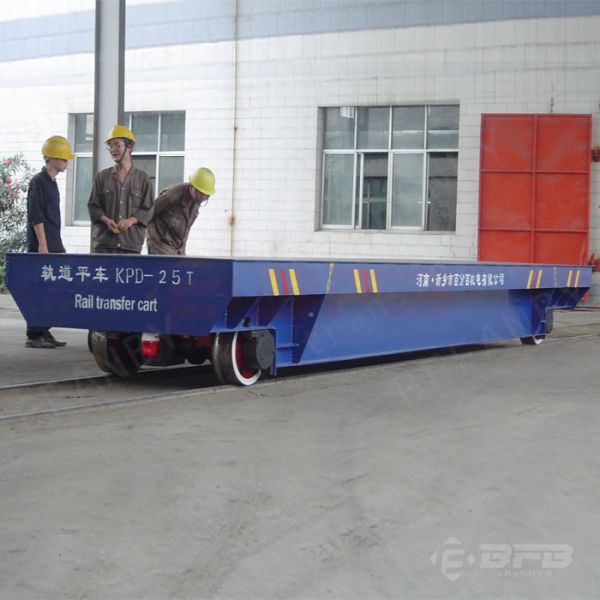

25t Electric power DC motor heavy material foundry plant rail car

Name: 25t Electric power DC motor heavy material foundry plant rail car
Brand: BEFANBY
Price: 1 USD

Wholesale 25t Electric power DC motor heavy material foundry plant rail car from china suppliers

Brand Name : BEFANBY

Model Number : KPDZ-25T

Certification : CE,SGS,ISO9001

Place of Origin : Xinxiang

MOQ : 1 SET

Price : Negotiation

Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch

Supply Ability : 600 sets one year

Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery

Packaging Details : Electrical parts will add shields. As required by the customer, we can add a fixed packing.

Shipment Port : Qingdao/Tianjin/Shanghai

Application : Production line or crossing rails workshop

Rated load : 50t

Max. capacity : Up to 300ton

Car size : 8000*3000*500mm

Electrical equipment : Siemens, Schneider, Nord

Exported countries : Mexico, Australia, Singapore

Material : Q235 steel

Wheel quantity : 4 pcs

Package : the whole cart is packed with plastic woth, the electric parts is packed by wooden crate

Delivery time : 45-60 days after received advamced payment

Payment terms : T/T, L/C

Port : Qingdao/Tianjin/Shanghai/Ningbo

Contact Now

25T Electric power DC motor heavy material foundry plant rail car

Description of 25t rail car

The frame of rail car is welded by high quality steel, with the assistant of running mechanism , gears, AC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.

25t Electric power DC motor heavy material foundry plant rail car

The rail car is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.

25t Electric power DC motor heavy material foundry plant rail car

Frame Driving system Steel wheel

25t Electric power DC motor heavy material foundry plant rail car

Reducer Light & sound alarm Bumper

Functions of rail car

Go forward and backward,
Turn left and right,
Adjust speed button,
Indicator light,
Electric indicator light and other control buttons.

Working principle of rail car

KPD type rail car is powered from 36v two-phase rails. It is two-phase electricity on rails. the transfer cart’s wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the carts. And then the AC 36v is transfer into DC 36v and then control the DC motor through the DC control system to make transfer cart start,stop,forward, and backward,etc.

The voltage of operating system is 36v safe voltage. After the transformer step-down from 380v AC three-phase, the rails got the electricity.

Advantages of rail car

Has no lit on using time and high working frequency;
Can be used in high-temperature environment;
Can be used in explosion-proof environment;
Safety and flexibility;
Large toad capacity, can reach to 50 tons;

Detailed description of the rail car

The rail car is suitable for working environment with not so long running distance, such as steel factory, machinery manufacturing plant, etc.

25t Electric power DC motor heavy material foundry plant rail car

The rail transporter is applied in motor production line to transfer heavy motor parts bay to bay.

25t Electric power DC motor heavy material foundry plant rail car

Technical parameters of rail transporter

Model		KPDZ-2t	KPDZ-20t	KPDZ-50t	KPDZ-100t	KPDZ-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Transformer Power(KVA)		3	6.8	10	30	30
Transformer Quanity		1	1	1	1	1
Running Distance(m)		70	70	50	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

Delivery of transfer platform

Generally the rail transporter is delivery through container, but if the platform is too large, it can be delivery through frame rack

Customer visit in our factory

Quality control of rail transporter

Other product of BEFANBY company

Our company

Our certificate

FAQ

Q: What is the capacity of the rail car? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

2. Q: What is the using candition?
A: The environment temperature should be in level. such as production line

3. Q: What is the working speed of the car?
A: The standard running speed is 0-20m/min.
